Building a Fluid macOS-Style Dock with Vanilla JavaScript and CSS

There is something undeniably satisfying about the macOS Dock. The way icons swell as your cursor approaches, the subtle "breathing" room between elements, and the glass-morphism aesthetic create a premium user experience.

In this article, we’ll break down how to recreate this fluid, interactive navigation system using only standard web technologies.

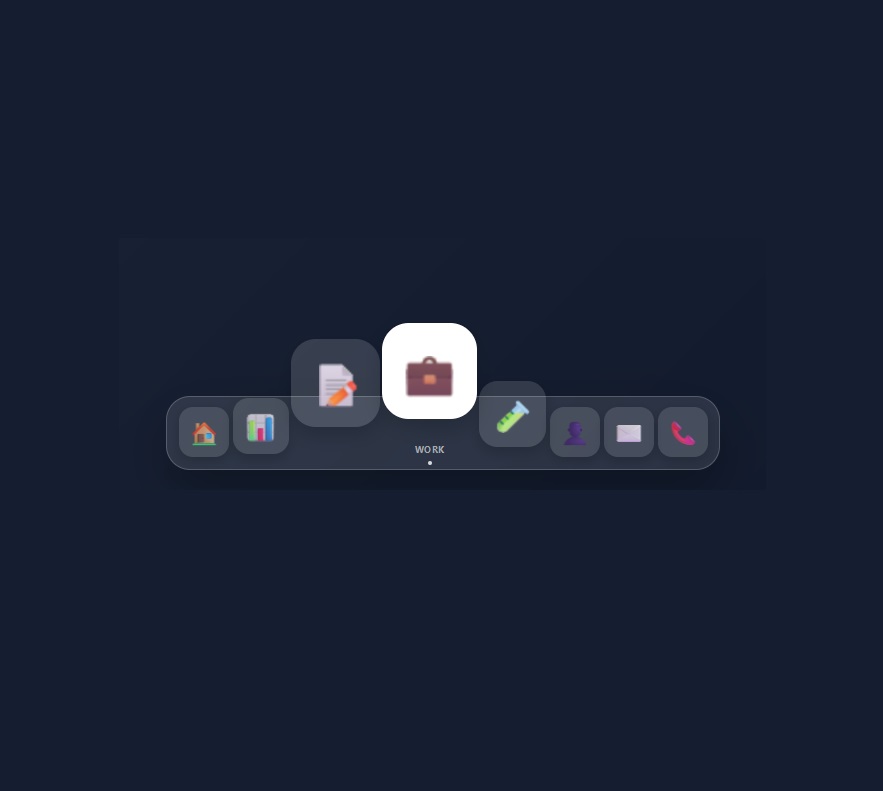

Dock Nav System:

1. The Design Philosophy: Glassmorphism & Motion

The aesthetic relies on Backdrop Filters. By using backdrop-filter: blur(25px), the dock doesn't just sit on top of the background; it interacts with it, appearing like frosted glass.

Key CSS Features:

  • Variable-Driven Layout: Using CSS variables (--base-size) allows for real-time scaling without manual recalculations.

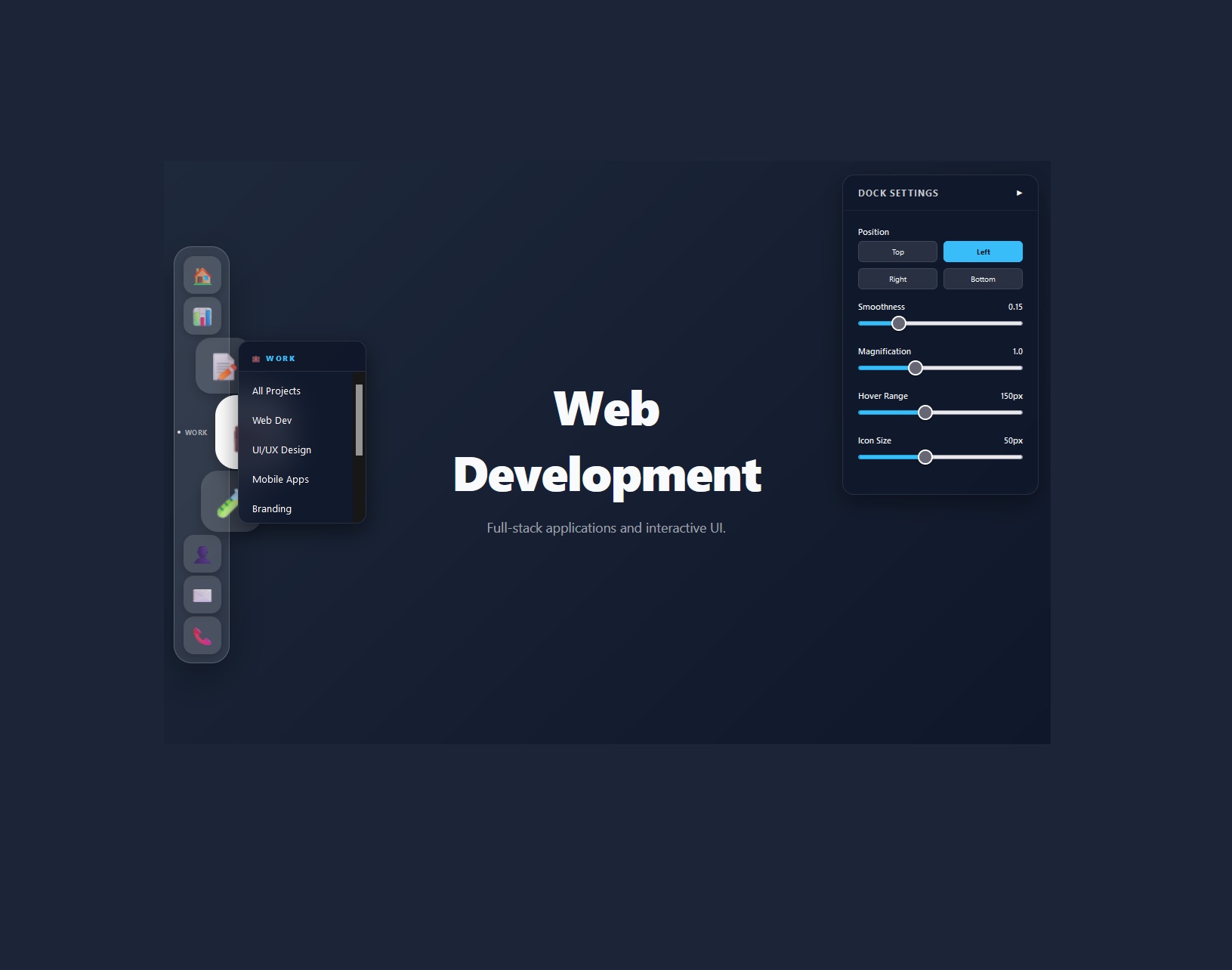

  • Dynamic Origins: Depending on whether the dock is at the top, bottom, or sides, the transform-origin changes to ensure icons expand away from the edge and toward the center of the screen.

2. The Physics of the "Swell" (The Math)

The most challenging part of a macOS dock is the magnification. We don't want a binary "hover or not" state; we want a bell curve of expansion.

[Image of a bell curve or Gaussian distribution graph]

The Cosine Curve

To achieve a smooth magnification effect, the code calculates the distance ($d$) between the mouse and the center of each icon. If the distance is within the hoverRange, we apply a cosine interpolation:

$target = \cos\left(\frac{d}{hoverRange} \cdot \frac{\pi}{2}\right)$

This ensures that the icon directly under the cursor is at $100%$ magnification, while its neighbors scale down gracefully to $0%$ extra magnification as the distance increases.

3. Smooth Interpolation (The Feel)

If we mapped the mouse position directly to the icon size, the movement would feel jittery. To solve this, we use Linear Interpolation (Lerp).

Instead of setting the scale instantly, we update it by a fraction of the distance between the current scale and the target scale:

currentScales[index] += (target - currentScales[index]) * animationSmoothness;
